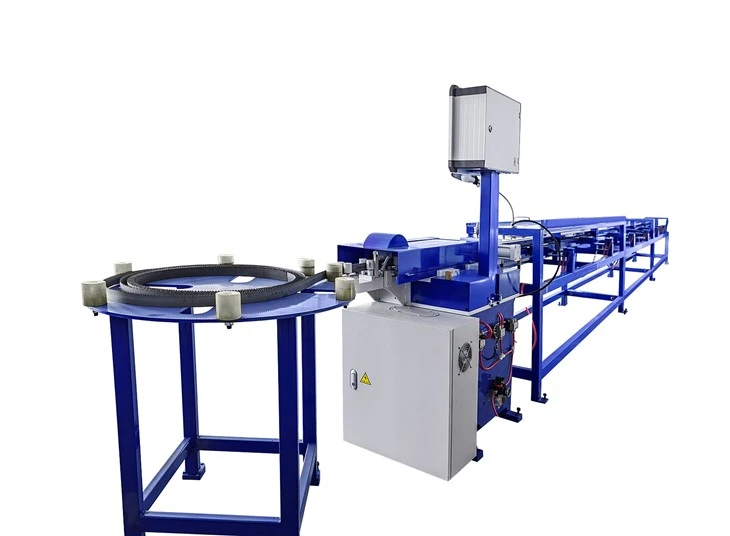

This equipment is designed for automated cutting of band saw blades.
| Main Technical Parameters | |
| Parameters and Model | CT90 |
| Voltage |
380V+N +PE(3P5W); 50/60HZ |
| Air Pressure | 6Bar |
| Hydraulics | 7Bar |
| Servo Motor | 0.75kw |
| Oil Pump Motor | 0.75kw |
| Cutting Saw Blade Width | 19-80mm/16-19mm |
| Main Unit Size | 1100*600*1600mm |
| Net Weight Of The Machine | 200kgs |
| Material Feeder Size | ( 830*870mm) /(1000*870mm) |
| Net Weight Of The Material Feeder | 100kgs |
| Workbench Size | 9000*850*1020mm |
| Net Weight Of The Workbench(9M) | 420kgs |
Main principles and characteristics
1. High Automation: Equipped with a PLC programmable controller and a touchscreen human-machine interface, supporting automatic feeding and clamping, achieving "one-button" operation and significantly reducing manual intervention.
2. High-Precision Cutting: Workpieces are stable during cutting, resulting in clean cuts with high dimensional consistency; errors can be controlled within 0.3mm.
3. Energy Efficient: Combined with a stepless speed regulation system, the feed speed can be intelligently adjusted according to material length and thickness, improving energy efficiency.
4. Safe and Reliable: Features multiple safety protection mechanisms including an emergency stop button, protective cover, limit switches, and proximity switches; adjustable Pneumatic and hydraulic system pressure prevents overload damage; clearly labeled function keys on the control panel prevent mis-operation.
5. Flexible Adaptability: Can be adapted to different specifications by changing and adjusting parameters.
6. User-Friendly Design: Equipped with a bilingual (Chinese/English) interface and self-diagnostic function, providing intuitive operation.
It integrates modules for feeding, clamping, length setting, cutting, blade retraction, and control.
