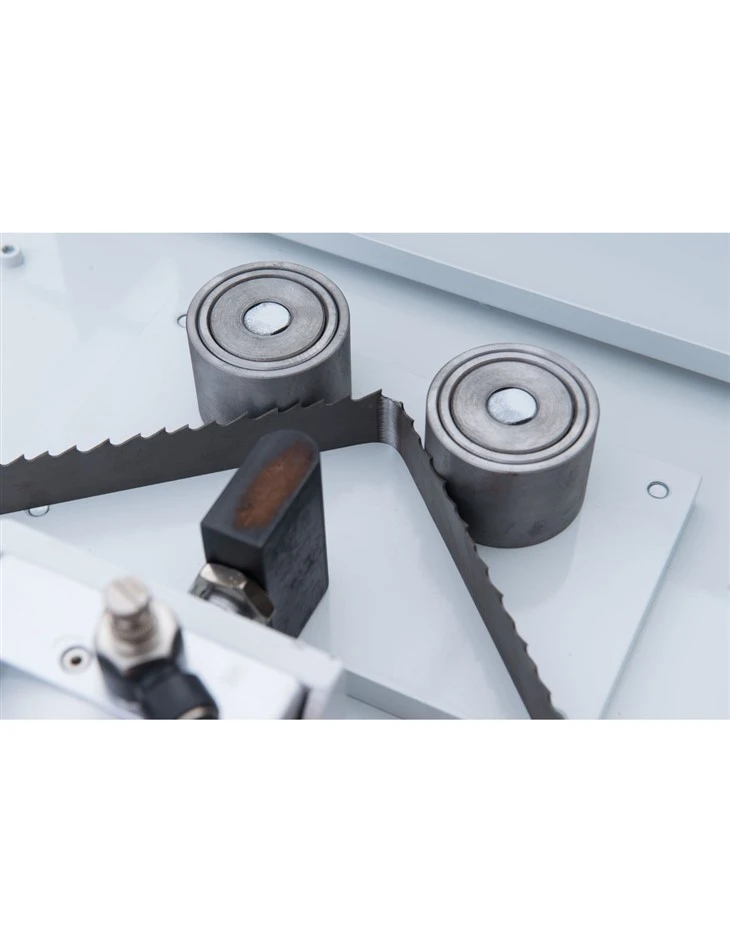

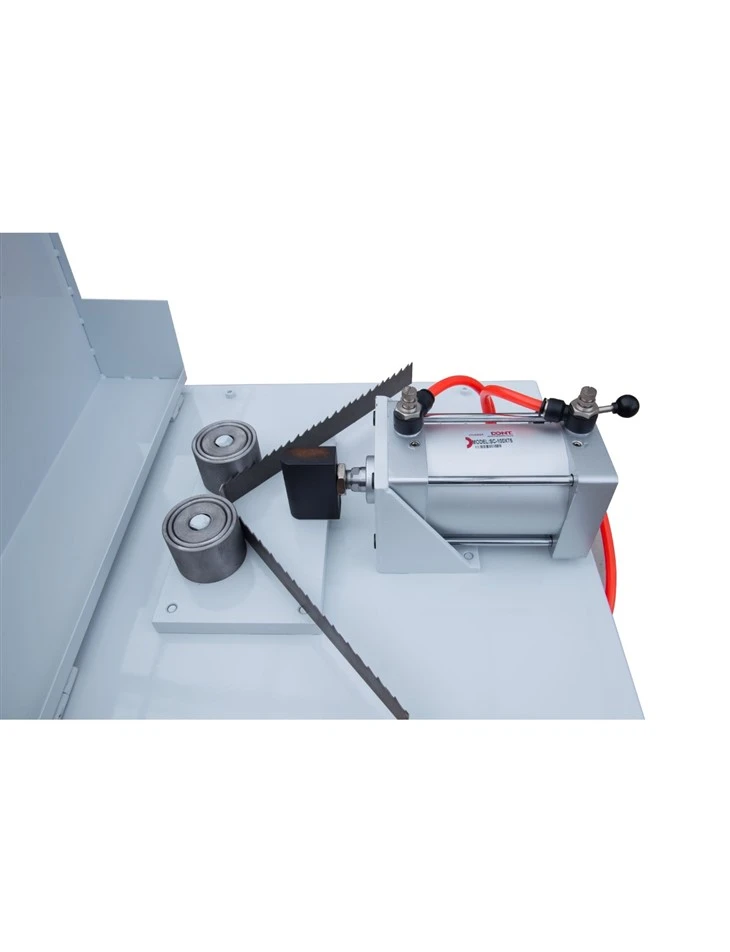

The band saw blade weld testing machine is a specialized piece of equipment used to inspect the quality of welded joints in band saw blades. It verifies whether the weld strength meets the required standards by applying a load to the weld joint and conducting a bending test.
|
Main Technical Parameters |
|
| Paramaters and Model | HK80 |
| Cylinder Stroke | 75mm |
| Testable Width | 19-80mm |
| Net Weight | 60KGS |
| Gross Weight | 80KGS |
| Machine Dimensions (LxWxH) | 510*540*840mm |
| Packing Dimensions (LxWxH) | 610*560*940mm |
Main Features
●Standardized Testing Eliminates Human Error
●Traditional manual bending tests pose safety risks and are affected by the operator's bending method and force, producing unstable and non-standard results. The weld tester applies a consistent mechanical load, ensuring uniform testing conditions and repeatable, comparable results.
●Safety Protection Design
●Metal cover over testing area prevents blade fragment splashes
●High Efficiency & Convenience
●Air drive replaces manual operation, reducing labor intensity
●Simple structure, low cost, easy maintenance
Core Value:
●Replaces visual inspection with standardized testing
●Ensures weld strength meets factory standards
●Reduces equipment failure risk from weld breakage
Applications:
●Quality control in bandsaw blade manufacturing
●Batch sampling inspection after welding process
●After-sales weld strength troubleshooting
