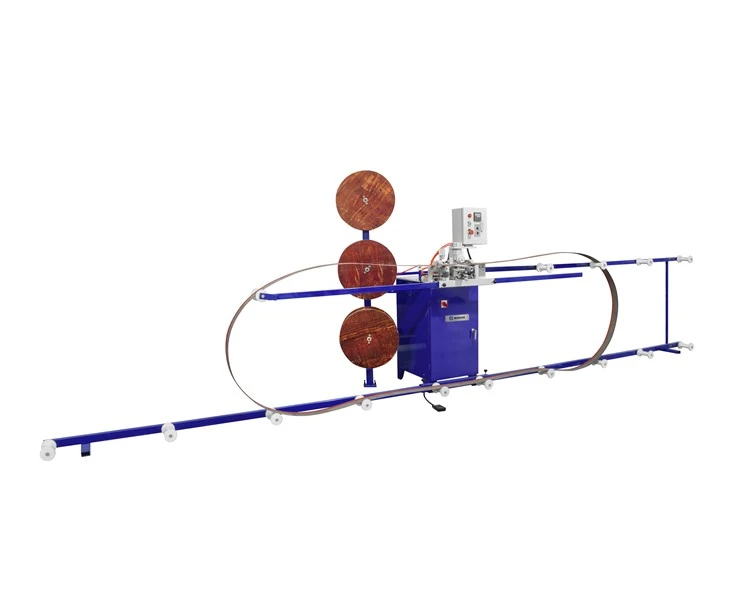

Band saw blade plastic protective strips and covers are primarily used to protect the saw blade teeth, maintaining their sharpness before use. The automatic band saw blade protective strip assembly machine automatically installs the plastic protective strips onto the sharp saw teeth to protect them.
| Main Technical Parameters | ||
| Parameters and Model | KD54 | KD80 |
| Voltage |
AC220V; 50/60HZ |
AC220V; 50/60HZ |
| Rated Power | 0.25KW | 0.25KW |
| Blade Width | 27-54mm | 27-80mm |
| Balde Length | 8000mm | 16000mm |
| Machine Weight | 155KG | 165KG |
| Assembly Dimensions | 2020*850*1800mm | 6000*800*1810mm |
| NW/GW | 155KG/210KG | 191KG/238KG |
| Packing Dimensions (LxWxH) | 700*840*1700mm |
700*840*1700mm(Machine)/500*150*3200(Frame) |
1. Applicable to band saws of various lengths and tooth shapes, automatically controlled by a meter, with simple setup.
2. Employs air cylinder clamping and motor drive, avoiding the safety hazards of manual operation.
3. The band saw blade plastic tooth protective cover is automatically installed according to the set length, and the running speed is infinitely adjustable by a speed-regulating motor.
4. The automatic band saw blade tooth protective strip assembly machine replaces traditional manual operation, greatly improving work efficiency and saving labor costs.
5. A customizable marking machine station can be added, integrating band saw blade product marking and tooth protection strip installation.
