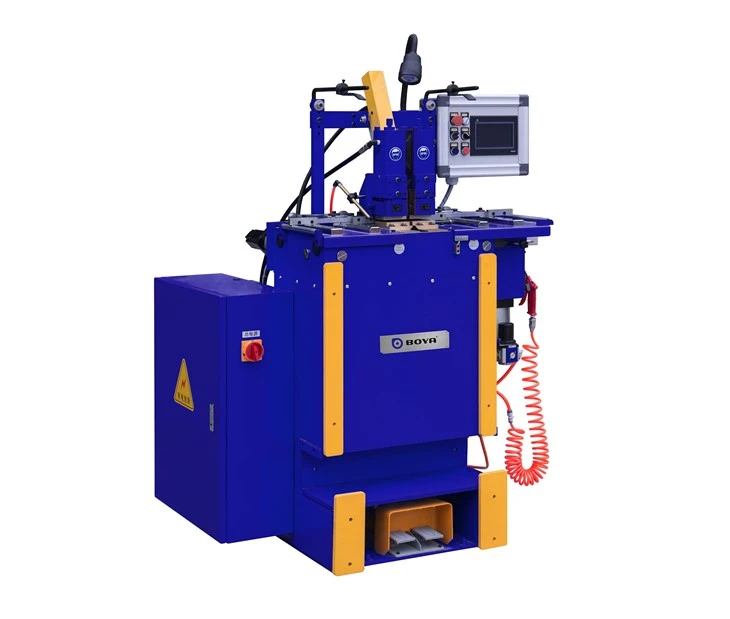

The structure design of this series of welding machines is reasonable, and it is suitable for the docking of various specifications and sizes and different materials. lt has the advantages of strong welding tensile strength, good toughness, fast speed, beautiful welding joint, and obviously better than manual welding.
The machine welds a wide variety of band saw blades, bi-metal band saw blades, carbide-tipped band saw blades, woodworking band saw blades, stainless steel band saw blades, and other saw blade products-including blades for cutting leather and foam.
| Main Technical Parameters | |||
| Parameters and Model | SD19 | SD19 | SD80 |
| Voltage |
380V+N +PE(3P5W); 50/60HZ |
380V+N +PE(3P5W); 50/60HZ |
380V+N +PE(3P5W); 50/60HZ |
| Rated Power | 20KW | 25KW | 30KW |
| Air Pressure | 3-4bar | 4-6.5bar | 4-7.5bar |
| Hydraulics | 10bar | 16bar | 18-20bar |
| Oil Pump Motor | 1.1KW | 1.1KW | 1.1KW |
| Servo Motor | 0.4KW | 0.4KW | 0.4KW |
| Cooling Pump | - | 0.04KW | 0.04KW |
| Weld Width | 13-19mm | 27-54mm | 27-80mm |
| Weld Thickness | 0.4-0.65mm | 0.9-1.6mm | 0.9-1.6mm |
| Water Tank | - | Y | Y |
| Net/ Gross Weight | 675KG/800KG | 700KG/820KG | 764KG/890KG |
| Machine Dimensions (LxWxH) | 1280*880*1600mm | 1280*880*1600mm | 1280*880*1600mm |
| Packing Dimensions (LxWxH) | 1320*100*1800mm | 1320*100*1800mm | 1320*100*1800mm |

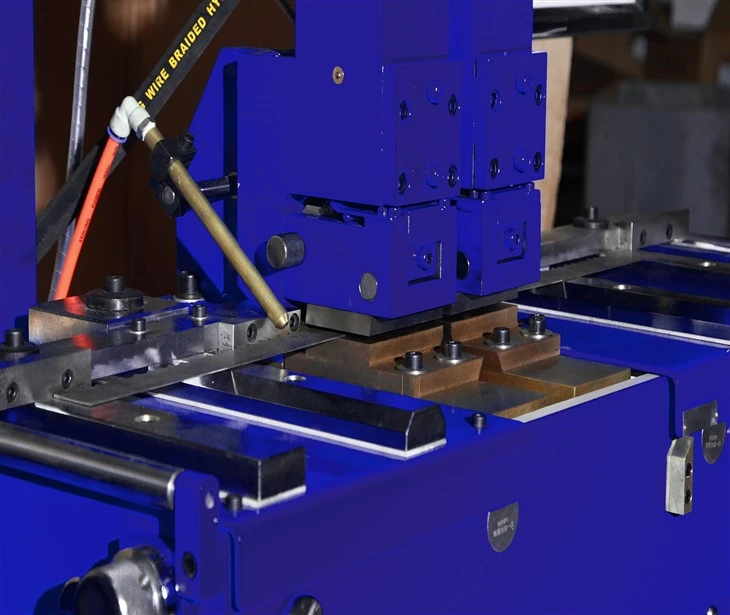

1. Vertical hydraulic clamping cylinders, much more stable .The pressing is driven by hydraulic pressure, and the pressing force is large.
2. Flash forwarding and upsetting are controlled by cams, flashing speed is balanced and the quality of the butt joint is good.
3. The process of welding, annealing and reset is fully automated.
4. The burning loss of welding flash, the return distance and reset can be adjusted freely.
5. lt has the advantages of strong welding tensile strength, good toughness, fast speed, beautiful welding joint, and obviously better than manual welding.
6. There are ten sets of welding specifications for customers to choose.
7. Tempering has the function of slow lifting.
8. It has counting function.
9. Using high-speed PLC as the main control chip, it has the characteristics of strong anti-interference, fast response, high control precision and high integration.
10. Electrical control: The main accessories are from Germany and Japan.
11. It has four working modes: automatic, semi-automatic, manual and editing.
12. Multi-purpose welded band saw blades, bi-metal band saw blades, carbide-tipped band saw blades, woodworking band saw blades, stainless steel band saw blades, and other saw blade products—including blades for cutting leather and foam.
