Modern fabrication industries no longer operate under uniform material conditions. Instead, production environments routinely process multiple metal categories with significantly different machinability indexes. Material selection is not an isolated decision but a coupled engineering strategy involving workpiece properties, high-speed steel (HSS) tooth composition, and backing steel behavior.
Three dominant workpiece categories define most industrial cutting workloads:
●Carbon steel (low to medium hardness, high machinability variability)
●Alloy steel (enhanced hardness and tensile strength due to alloying elements)
●Stainless steel (high work hardening rate and thermal resistance)
Each category interacts differently with the bimetal band strip system, affecting tooth wear, heat generation, and fatigue loading of the backing steel.
Carbon Steel Cutting Strategy: Stability-Oriented Material Matching.
Carbon Steel Cutting Strategy: Stability-Oriented Material Matching
Mechanical Behavior of Carbon Steel
Carbon steel exhibits relatively predictable chip formation and moderate cutting resistance. However, its performance varies significantly depending on carbon content and heat treatment state.
Typical characteristics:
●Moderate hardness range
●Stable chip fragmentation
Lower tendency for work hardening compared to stainless steel

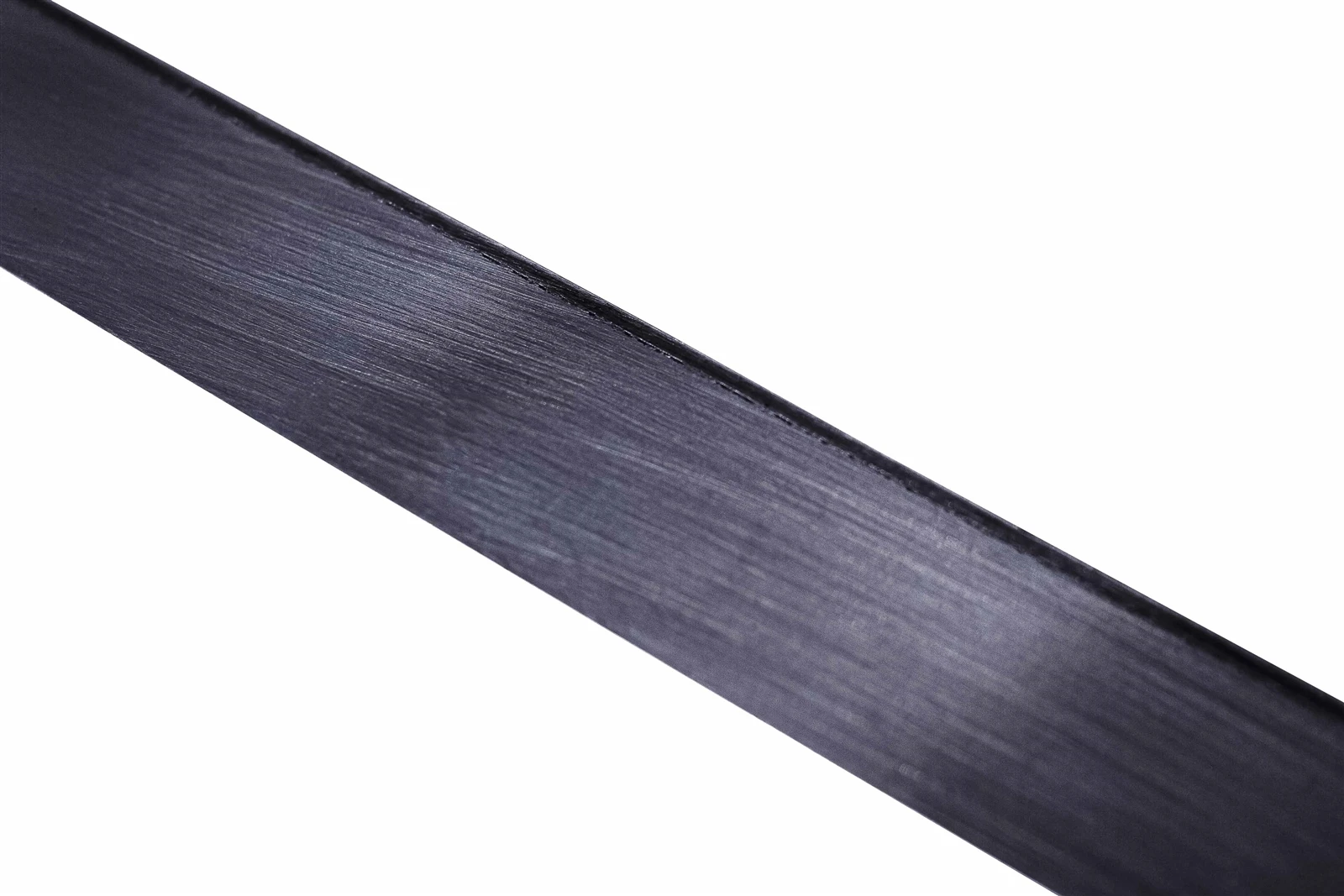

Recommended Bimetal Strip Configuration
For carbon steel applications, the priority is efficiency and cost optimization rather than extreme wear resistance.
Typical matching strategy:
HSS grade: M2 or Matrix II
Backing steel: 6150M or X32
Tooth geometry: standard variable pitch
Since carbon steel does not impose extreme thermal or abrasive stress, excessive cobalt content (e.g., M51) is not economically justified. Instead, balanced hardness and toughness ensure stable cutting cycles and reduced operational cost.

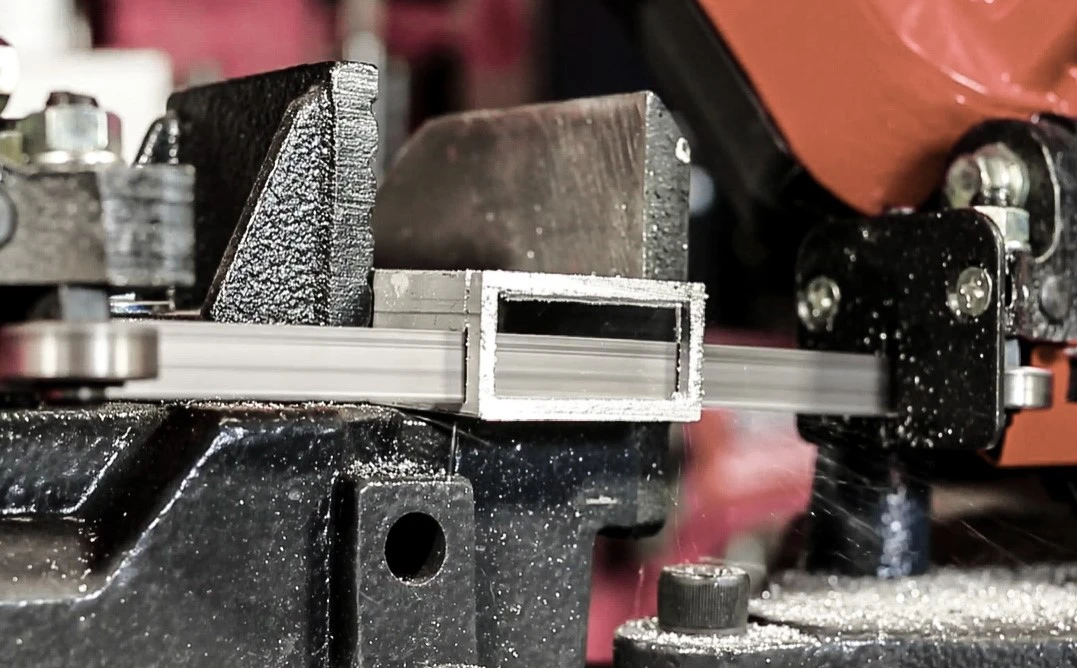

Alloy Steel Cutting Strategy: Balanced Resistance Management
Mechanical Behavior of Alloy Steel
Alloy steels introduce additional elements such as chromium, molybdenum, or nickel, which significantly increase hardness and tensile strength.
Key challenges include:
●Higher cutting resistance
●Increased tool wear rate
●Localized heat accumulation at the cutting interface
Recommended Bimetal Strip Configuration
Alloy steel cutting requires a more robust and thermally stable system.
Typical matching strategy:
●HSS grade: M42 or powder M42 (2042)
●Backing steel: X32 or D6A depending on load intensity
●Tooth geometry: variable pitch with reinforced gullet design
The inclusion of cobalt in M42 improves red hardness, enabling the cutting edge to maintain structural integrity under elevated temperatures. The backing steel must simultaneously absorb increased cyclic stress without fatigue propagation.
This creates a dual requirement: thermal stability at the tooth and mechanical resilience at the backing layer.
Stainless Steel Cutting Strategy: Thermal and Work Hardening Control
Mechanical Behavior of Stainless Steel
Stainless steel presents one of the most challenging cutting environments due to:
●High work hardening rate
●Low thermal conductivity
●Continuous heat accumulation at the cutting interface
These factors accelerate tool wear and increase the risk of tooth micro-chipping.
Recommended Bimetal Strip Configuration
Recommended Bimetal Strip Configuration
Stainless steel cutting demands high-end material synergy.
Typical matching strategy:
●HSS grade: M51 or high-cobalt M42 variants
●Backing steel: D6A preferred for maximum fatigue resistance
●Tooth geometry: optimized chip load distribution design
M51, with higher cobalt content, maintains hardness under severe thermal stress, preventing edge softening. D6A backing steel ensures the blade maintains tension stability during extended high-load cutting cycles.
The system must prioritize heat resistance over cost efficiency.
Comparative Engineering Matrix of Material Strategies
Performance Hierarchy Across Materials
| Workpiece Type | Primary Challenge | Recommended HSS | Backing Steel Priority |
| Carbon Steel | Efficiency loss risk | M2 / Matrix II | Cost-stability balance (6150M) |
| Alloy Steel | Heat + wear load | M42 / 2042 | Balanced fatigue resistance (X32/D6A) |
| Stainless Steel | Work hardening + heat retention | M51 | Maximum fatigue stability (D6A) |
System-Level Interaction
Cutting performance is not determined by a single material parameter. Instead, it emerges from interactions between:
●tooth hardness vs workpiece resistance
●backing elasticity vs cyclic load frequency
●thermal diffusion rate vs cutting speed
This interaction defines the real operational lifetime of a bimetal band strip.
Premature wear due to over-specified tool grade
Economic inefficiency rather than mechanical failure
Tooth edge micro-fracture from thermal cycling
Accelerated wear due to abrasive alloy constituents
Severe work hardening leading to overload stress
Thermal softening at insufficient cobalt levels
Backing fatigue due to sustained high tension requirements
Process Optimization Considerations
Cutting Parameters as Material Amplifiers
Even optimal material selection can fail under incorrect machine settings:
●Excessive feed rate increases tooth overload
●Low cutting speed intensifies work hardening
●Improper tension accelerates backing fatigue
System Calibration Principle
The optimal configuration requires alignment of:
●material hardness hierarchy (HSS grade)
●backing elasticity modulus
●machine power output and stability
This alignment defines the "cutting system equilibrium."
Material strategy in bimetal band strip applications is fundamentally a system optimization problem rather than a simple selection task.
Carbon steel requires efficiency-driven configurations with moderate-grade HSS and cost-balanced backing steels.
Alloy steel demands thermally resilient systems with cobalt-enhanced HSS and fatigue-resistant backing materials.
Stainless steel necessitates high-performance configurations prioritizing heat resistance and structural stability under cyclic stress.
The evolution of industrial cutting technology is moving toward integrated material engineering, where performance is defined not by individual components, but by their coordinated interaction under real operating conditions.
