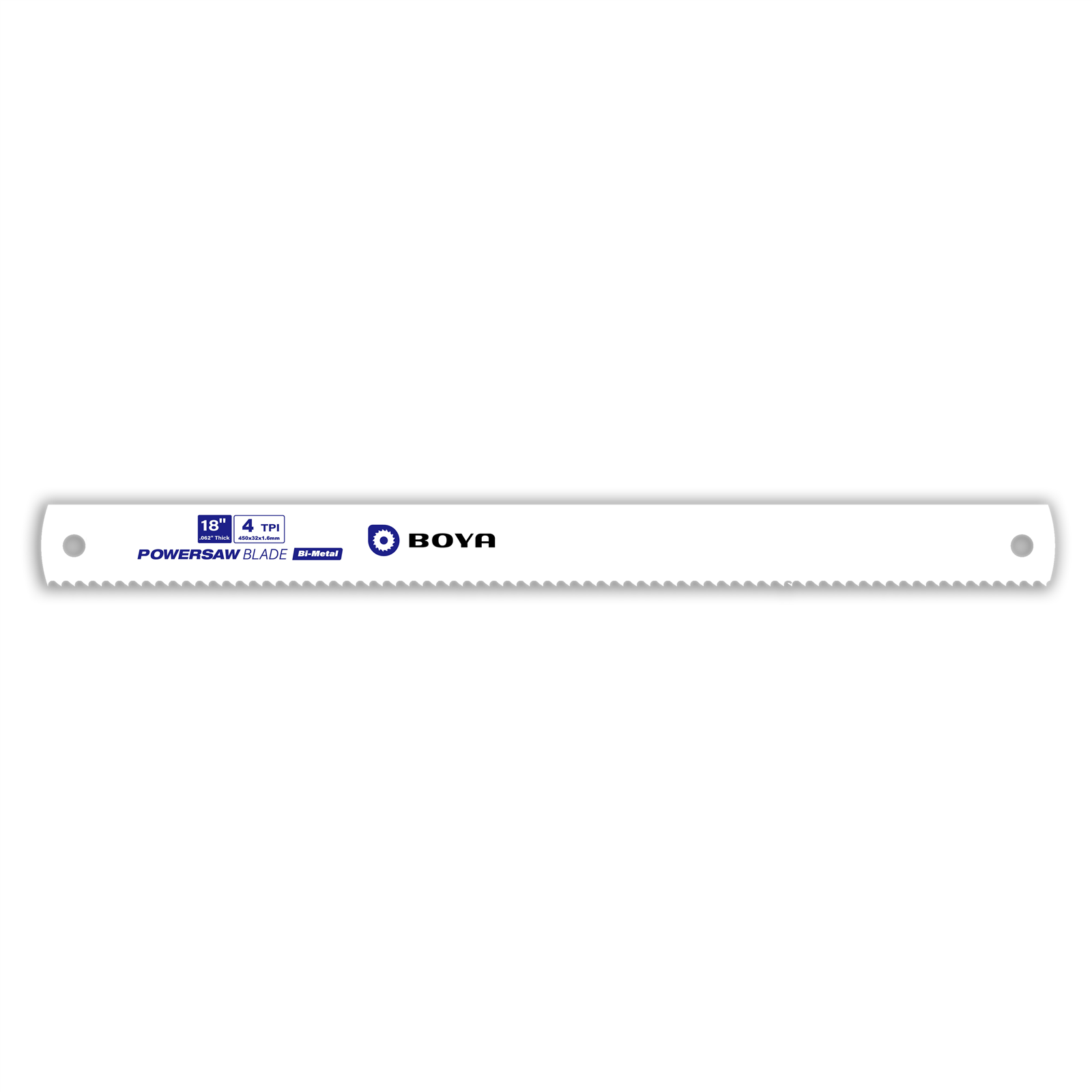

In industrial metal cutting, Although power hacksaw machines are often considered mature technology, the performance of a power hacksaw blade can vary dramatically depending on the workpiece geometry being processed. A blade that performs efficiently on a solid steel bar may experience premature tooth failure when used on thin-wall tubing, while a blade optimized for structural profiles may generate excessive vibration when cutting heavy sections.
Geometry Matters More Than Material Alone
Many operators focus primarily on material type when selecting a blade. While material hardness, tensile strength, and machinability are important, workpiece geometry often has an equally significant influence on cutting behavior.
A low-carbon steel solid bar, a hollow tube, and an H-beam may all be manufactured from the same grade of steel, yet the blade experiences completely different cutting conditions when processing each component.
The reason lies in the changing number of teeth engaged in the cut, chip formation characteristics, and the variation of cutting forces during blade travel.
In power hacksaw operations, the blade moves in a reciprocating motion. During each cutting stroke, individual teeth remove material and generate chips. The stability of this process depends heavily on maintaining an appropriate number of teeth in contact with the workpiece at all times.
When too few teeth engage the material, tooth loading increases dramatically, leading to chipping and tooth stripping. Conversely, when too many teeth are engaged, chip space becomes insufficient, causing excessive friction, heat generation, and premature wear.
This principle forms the foundation of blade selection.
Solid round bars and square bars represent one of the most demanding cutting applications for power hacksaw blades.
Unlike hollow sections, solid materials maintain continuous engagement throughout the cut. Once the blade penetrates the workpiece, every tooth experiences a relatively stable load condition.
The primary challenge is not impact loading but material removal volume.
As bar diameter increases, chip production rises significantly. Larger chips require greater gullet capacity and stronger tooth structures.
For this reason, coarse tooth pitches are typically preferred.
Advantages of coarse-pitch blades in solid bar cutting include:
•Larger chip-carrying capacity
•Lower risk of tooth clogging
•Improved heat dissipation
•Higher feed capability
•Reduced cutting time
A common mistake is selecting a fine-pitch blade for large solid sections. Although the cut may initially appear smoother, chip evacuation becomes increasingly difficult as the blade penetrates deeper into the material. This often results in excessive heat generation and accelerated tooth wear.
In heavy solid-section cutting, tooth strength is generally more important than surface finish.
Thick-Wall Tubes: Balancing Strength and Impact Resistance
Unlike solid bars, the blade periodically encounters changing engagement conditions as it enters the outer wall, passes through the hollow cavity, and exits the opposite wall.
The transition from metal to empty space creates cyclic loading patterns.
Each tooth experiences:
•Initial impact during entry
•Stable cutting through the wall
•Sudden unloading within the cavity
•Re-engagement at the opposite wall
This repeated loading and unloading process can contribute to tooth fatigue.
Medium tooth pitches often provide the best balance between chip capacity and tooth support.
Blade selection should consider:
•Wall thickness
•Tube diameter
•Material grade
•Machine rigidity
As wall thickness increases, cutting conditions begin to resemble those of solid materials, requiring stronger teeth and greater chip-carrying capacity.
Thin-Wall Tubes: The Challenge of Tooth Stripping
Thin-wall tubing is among the most challenging applications for power hacksaw blades.
The problem is not cutting force but tooth impact.
When only one or two teeth contact a thin wall, the load concentration becomes extremely high. Individual teeth may strike the material aggressively, causing chipping or complete tooth loss.
This phenomenon is commonly known as tooth stripping.
To avoid this issue, finer tooth pitches are generally recommended.
The objective is to maintain several teeth in contact with the material simultaneously.
Benefits include:
•Reduced tooth loading
•Lower vibration levels
•Improved cut accuracy
•Better edge quality
•Longer blade life
Thin-wall stainless steel tubing presents an even greater challenge due to work hardening. Once the material hardens at the cutting interface, tooth wear accelerates rapidly if cutting parameters are not optimized.
Structural Profiles: Complex and Variable Cutting Conditions
Structural sections such as H-beams, I-beams, channels, and angle steel create some of the most dynamic cutting environments.
Unlike solid bars or tubes, these profiles contain alternating thick and thin sections.
As the blade moves through the profile, cutting forces constantly change.
For example, when cutting an H-beam:
1.The blade first enters the upper flange.
2.Engagement decreases as it reaches the web.
3.Load increases again when cutting the lower flange.
This continuous variation generates fluctuating cutting forces and vibration.
The challenge is selecting a blade capable of performing efficiently across multiple engagement conditions.
Variable-pitch blades often provide significant advantages in these applications because they distribute cutting forces more evenly and reduce harmonic vibration.
Structural steel fabricators frequently report substantial blade life improvements when switching from constant-pitch designs to variable-pitch configurations.
Angle Steel and Irregular Profiles
Angle steel introduces asymmetric cutting conditions.
Unlike symmetrical sections, one side of the blade may engage material before the opposite side.
This uneven loading can cause blade deflection and wandering.
Factors affecting performance include:
•Workpiece clamping quality
•Machine rigidity
•Tooth pitch selection
•Feed consistency
Maintaining stable blade guidance becomes particularly important when processing irregular profiles.
Inadequate support can lead to crooked cuts, excessive wear, and tooth damage.
Why Tooth Pitch Changes Everything
Tooth pitch selection remains the single most important factor in power hacksaw blade performance.
The ideal pitch depends primarily on the thickness of material engaged during cutting rather than overall workpiece dimensions.
A general engineering principle is maintaining multiple teeth in contact with the workpiece throughout the cutting cycle.
Proper tooth engagement provides:
•Balanced cutting forces
•Improved chip formation
•Reduced vibration
•Lower tooth stress
•Extended blade life
Incorrect pitch selection is responsible for a large percentage of premature blade failures observed in industrial sawing operations.
Why Blade Life Differs So Dramatically
Many users are surprised to discover that the same blade may cut thousands of pieces in one application and fail after only a few hundred cuts in another.
The explanation lies in the interaction of several factors:
Cutting Force Distribution
Different geometries produce different load patterns.
Impact Loading
Thin materials create repeated tooth impacts.
Chip Formation
Large chips require greater gullet capacity.
Heat Generation
Restricted chip flow increases friction and temperature.
Vibration
Changing engagement conditions can induce chatter and fatigue.
Material Behavior
Work-hardening alloys accelerate wear rates.
Blade life is therefore determined not by material hardness alone but by the combined effects of geometry, loading, thermal conditions, and machine stability.
Selecting the correct power hacksaw blade for bars, tubes, and structural profiles requires a detailed understanding of cutting mechanics rather than a simple evaluation of material type. Workpiece geometry directly influences tooth engagement, cutting forces, vibration behavior, heat generation, and blade wear.
Whether cutting solid bars, thick-wall tubes, thin-wall tubing, H-beams, I-beams, or angle steel, matching tooth pitch and blade characteristics to the application remains the most effective way to maximize productivity and minimize operating costs.
